NMLC HMLC Conventional Triple Tube Core Lifter Case

NMLC HMLC Conventional Triple Tube Core Lifter Case

ROSCHEN offers NMLC HMLC core lifter for use with NMLC HMLC core barrels. The NMLC HMLC core lifter is a hardened steel, split collar with a tapered body that mates to a tapered socket in the NMLC HMLC core lifter case. In a core breaking operation, the drill string is lifted off bottom and the core sample begins to slide out of the inner-tube. Grip features on the inner surface of the core lifter catch the moving core sample and pull the core lifter towards the smaller end of the tapered socket in the core lifter case. The core lifter is constricted against the core sample and retains it after it has broken, allowing retrieval to surface. MLC series core lifters are available for application in DCDMA N H size.

ROSCHEN'S core lifters are made out of high-quality alloy steel that has been heat treated to increase strength, toughness, and wear life.

NMLC HMLC core lifter types:

(1) A-NMLC HMLC Fluted Type Core lifter.

-Ideal for use in broken ground.

-Increased flexibility; ideal for use when encountered irregular core shapes.

-Also known as the broached core lifter.

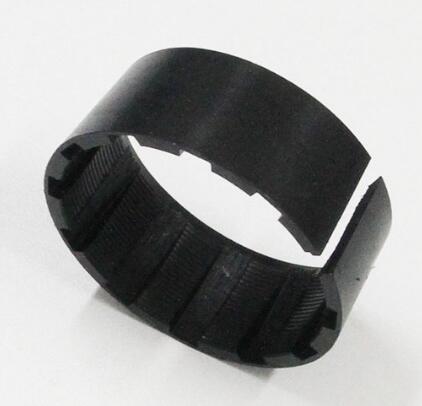

(2) B-NMLC HMLC Slotted Type Core lifter.

-Improved core lifter design.

-Ideal for use in competent ground conditions.

-Increased grip area with the core sample.

-Also known as the Brown Core Lifter.



NOTE:
Diamond coated core lifter is also available.
